Steps Class Reference

Holds note information for a Song. More...

#include <Steps.h>

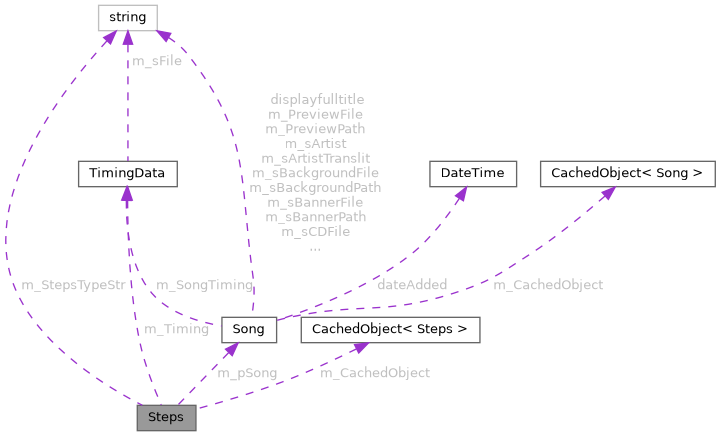

Collaboration diagram for Steps:

Public Member Functions
	Steps (Song *song)
	Set up the Steps with initial values.
	~Steps ()
	Destroy the Steps that are no longer needed.
auto	operator= (const Steps &) -> Steps &
void	CopyFrom (Steps *pSource, StepsType ntTo)
void	CreateBlank (StepsType ntTo)
void	Compress () const
void	Decompress () const
void	Decompress ()
auto	GetDescription () const -> const std::string &
	Retrieve the description used for this edit.
auto	GetChartStyle () const -> const std::string &
	Retrieve the ChartStyle used for this chart.
auto	GetDifficulty () const -> const Difficulty
	Retrieve the difficulty used for this edit.
auto	GetMeter () const -> int
	Retrieve the meter used for this edit.
auto	GetRadarValues () const -> const RadarValues &
auto	GetCredit () const -> const std::string &
	Retrieve the author credit used for this edit.
auto	GetChartName () const -> const std::string &
void	SetChartName (const std::string &name)
void	SetFilename (const std::string &fn)
auto	GetFilename () const -> const std::string &
void	SetSavedToDisk (bool b)
auto	GetSavedToDisk () const -> bool
void	SetDifficulty (Difficulty dc)
void	SetDescription (const std::string &sDescription)
void	SetDifficultyAndDescription (Difficulty dc, const std::string &sDescription)
void	SetCredit (const std::string &sCredit)
void	SetChartStyle (const std::string &sChartStyle)
void	SetDupeDiff (bool state)
auto	IsDupeDiff () -> bool
void	SetLoadedFromProfile (ProfileSlot slot)
void	SetMeter (int meter)
void	SetCachedRadarValues (const RadarValues &v)
auto	GetNPSPerMeasure (const NoteData &nd, const std::vector< float > &etaner, const std::vector< int > &nerv, float rate) -> std::vector< float >
auto	GetHash () const -> unsigned
void	GetNoteData (NoteData &noteDataOut) const
auto	GetNoteData () const -> NoteData
void	SetNoteData (const NoteData &noteDataNew) const
void	SetSMNoteData (const std::string &notes_comp)
void	GetSMNoteData (std::string &notes_comp_out) const
auto	GetNoteDataFromSimfile () -> bool
	Retrieve the NoteData from the original source.
auto	IsNoteDataEmpty () const -> bool
	Determine if we are missing any note data.
void	GetETTNoteData (std::string &notes_comp_out) const
void	TidyUpData ()
void	CalculateRadarValues ()
auto	GetTimingData () const -> const TimingData *
	Retrieves the appropriate timing data for the Steps. Falls back on the Song if needed.
auto	GetTimingData () -> TimingData *
auto	GetChartKey () const -> const std::string &
void	SetChartKey (const std::string &k)
void	SetAllMSD (const std::vector< std::vector< float > > &msd)
auto	GetAllMSD () const -> std::vector< std::vector< float > >
auto	SortSkillsetsAtRate (float x, bool includeoverall) -> std::vector< std::pair< Skillset, float > >
void	CalcEtternaMetadata (Calc *calc=nullptr)
auto	DoATestThing (float ev, Skillset ss, float rate, Calc *calc) -> float
void	GetCalcDebugOutput ()
void	UnloadCalcDebugOutput ()
auto	IsRecalcValid () -> bool
auto	GetMSD (float rate, int ss) const -> float
auto	GetMSD (float rate, Skillset ss) const -> float
auto	HasSignificantTimingChanges () const -> bool
	Determine if the Steps have any major timing changes during gameplay.
auto	IsPlayableForCurrentGame () const -> bool
auto	GetMusicPath () const -> const std::string
auto	GetMusicFile () const -> const std::string &
void	SetMusicFile (const std::string &file)
void	PushSelf (lua_State *L)
void	SetDisplayBPM (const DisplayBPM type)
auto	GetDisplayBPM () const -> DisplayBPM
void	SetMinBPM (const float f)
auto	GetMinBPM () const -> float
void	SetMaxBPM (const float f)
void	SetFirstSecond (const float f)
void	SetLastSecond (const float f)
auto	GetMaxBPM () const -> float
void	GetDisplayBpms (DisplayBpms &addTo, bool bIgnoreCurrentRate=false) const
auto	GetLengthSeconds (float rate=1) const -> float
	Returns length of step in seconds. If a rate is supplied, the returned length is scaled by it.
auto	Getdebugstrings () -> const std::vector< std::string > &
auto	IsSkillsetHighestOfChart (Skillset skill, float rate) -> bool
auto	IsFavorited () const -> bool
auto	SetFavorited (bool b) -> void
auto	HasGoal () const -> bool
auto	SetHasGoal (bool b) -> void
auto	IsPermaMirror () const -> bool
auto	SetPermaMirror (bool b) -> void

Static Public Member Functions
static auto	MakeValidEditDescription (std::string &sPreferredDescription) -> bool
static auto	GetNPSVector (const NoteData &nd, const std::vector< float > &etaner, const std::vector< int > &nerv, float rate) -> std::vector< int >
static auto	GetCNPSVector (const NoteData &nd, const std::vector< int > &nerv, const std::vector< float > &etaner, int chordsize, float rate) -> std::vector< int >
static auto	GenerateChartKey (NoteData &nd, TimingData *td) -> std::string

Public Attributes
TimingData	m_Timing
	The TimingData used by the Steps.
std::vector< float >	dummy = { 0.F, 0.F, 0.F, 0.F, 0.F, 0.F, 0.F, 0.F }
std::vector< std::vector< float > >	diffByRate
std::vector< std::vector< std::vector< std::vector< float > > > >	calcdebugoutput
float	firstsecond = 0.F
float	lastsecond = 0.F
StepsType	m_StepsType
std::string	m_StepsTypeStr
	The std::string form of the StepsType, for dealing with unrecognized styles.
Song *	m_pSong
	The Song these Steps are associated with.
std::vector< NoteInfo >	serializenotedatacache
CachedObject< Steps >	m_CachedObject

Detailed Description

Holds note information for a Song.

A Song may have one or more Notes.

Member Function Documentation

GetChartStyle()

auto Steps::GetChartStyle ( ) const -> const std::string&

inline

Retrieve the ChartStyle used for this chart.

Returns

the description used for this chart.

GetCredit()

auto Steps::GetCredit ( ) const -> const std::string&

inline

Retrieve the author credit used for this edit.

Returns

the author credit used for this edit.

GetDescription()

auto Steps::GetDescription ( ) const -> const std::string&

inline

Retrieve the description used for this edit.

Returns

the description used for this edit.

GetDifficulty()

auto Steps::GetDifficulty ( ) const -> const Difficulty

inline

Retrieve the difficulty used for this edit.

Returns

the difficulty used for this edit.

GetMeter()

auto Steps::GetMeter ( ) const -> int

inline

Retrieve the meter used for this edit.

Returns

the meter used for this edit.

GetNoteDataFromSimfile()

auto Steps::GetNoteDataFromSimfile

(

)

-> bool

Retrieve the NoteData from the original source.

Returns

true if successful, false for failure.

HasSignificantTimingChanges()

auto Steps::HasSignificantTimingChanges

(

)

const -> bool

Determine if the Steps have any major timing changes during gameplay.

Returns

true if it does, or false otherwise.

IsNoteDataEmpty()

auto Steps::IsNoteDataEmpty

(

)

const -> bool

Determine if we are missing any note data.

This takes advantage of the fact that we usually compress our data.

Returns

true if our notedata is empty, false otherwise.

Member Data Documentation

diffByRate

std::vector<std::vector<float> > Steps::diffByRate

Initial value:

= {
        dummy, dummy, dummy, dummy, dummy, dummy, dummy,
        dummy, dummy, dummy, dummy, dummy, dummy, dummy,
        dummy, dummy, dummy, dummy, dummy, dummy, dummy
    }

m_Timing

TimingData Steps::m_Timing

The TimingData used by the Steps.

This is required to allow Split Timing.

---

The documentation for this class was generated from the following files:

• /home/runner/work/etterna/etterna/src/Etterna/Models/StepsAndStyles/Steps.h
• /home/runner/work/etterna/etterna/src/Etterna/Models/StepsAndStyles/Steps.cpp
